Manual to start using SCP upload

Manual to start using SCP upload

You can upload files in the Spend Cloud to have them automatically processed in the import planning. To make the uploading process of these files as automated and secure as possible, it is recommended
to upload these files via SCP upload using puclib/private key authentication. The following steps explain how to establish the connection.
Alert: To use the SCP connection a subscription is needed. If you do not have it yet, contact your accountmanager.

1. Install WinSCP
  1. Download and install WinSCP from https://winscp.net/eng/downloads.php if you have WinSCP installed make sure you have updated to the latest version of WinSCP.
2. Generate a key pair

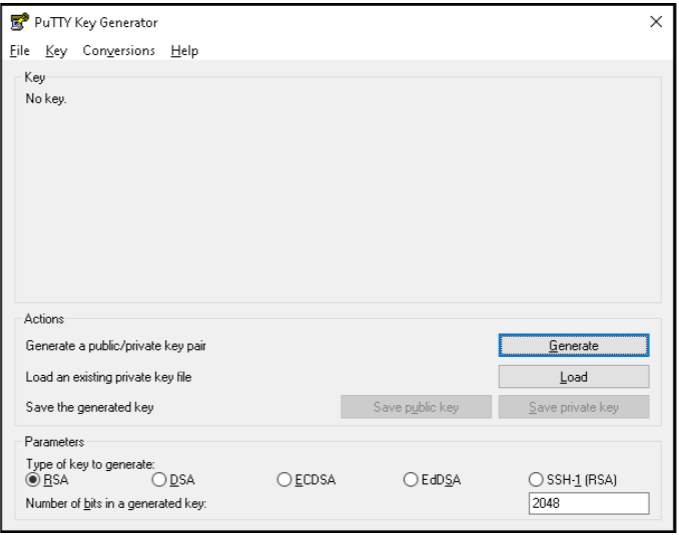

  1. After installing WinSCP you also have access to the program 'puttygen'. When you start this program you will see this screen:

  1. Click on 'Generate' to generate a new key pair. You will get a screen like the one below:

  1. Click on 'Save private key' and save the private key in a safe place. The private key is, as the name implies, 'private'. This will allow you to log in to the SCP server of the Spend Cloud. It is essential to store this key securely. Anyone who has this key can log in to the SCP server of the Spend Cloud and access the uploaded files. We will need this key later when we log in
  2. The piece of text in the top frame at "Public key for pasting into OpenSSH authorized_keys file" must be copied to the Spend Cloud
3. Add the Public Key in the Spend Cloud

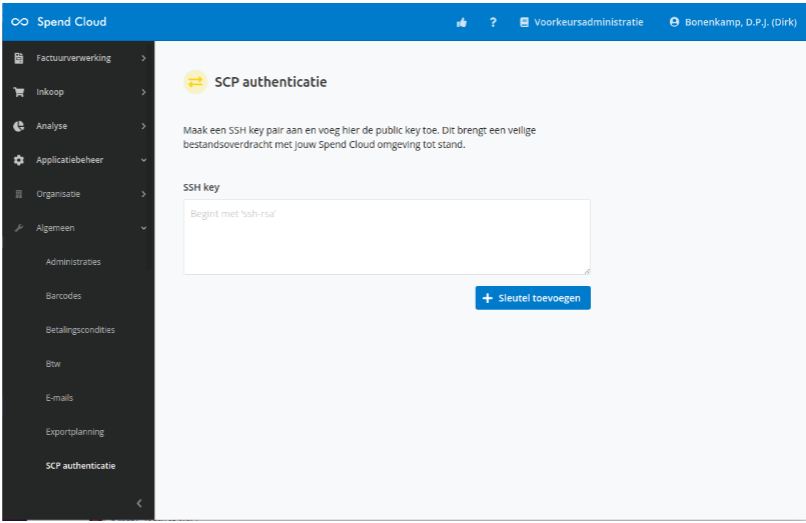

  1. Select and copy the text from the previous step and open the Spend Cloud. Navigate to "Application Manager > General > SCP". The screen looks as follows:

  1. The public key must be pasted in the input field and then click on 'Add key' to save the key.  This can take a while
  2. The Spend Cloud is now ready to connect via SCP
4. Connect via SCP

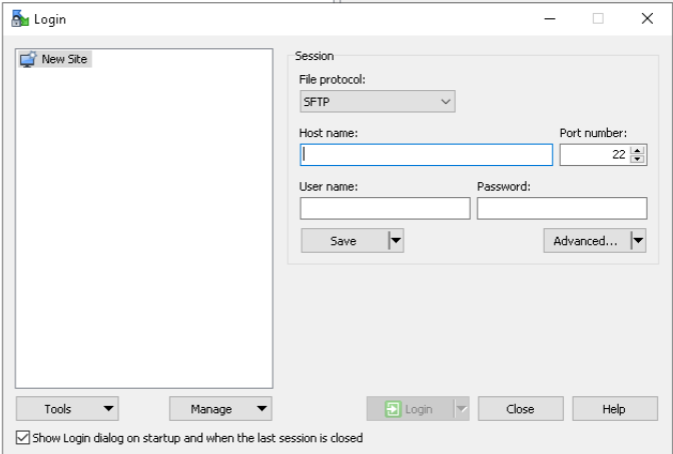

  1. Launch WinSCP. You will see the screen below:

  1. Enter the following information:
    1. Hostname for production: sftp.spend.cloud
    2. Hostname for test: sftp.test.spend.cloud
    3. Username : The name of the environment in lowercase.
  2. Click on advanced, and select 'Authentication' under 'SSH'. Here the private key file can be generated from step 2, bullet three
  3. Click 'OK' and "Login". A connection will now be made with the Spend Cloud. When logging in for the first time, the key fingerprint of the server must be accepted
  4. When successfully logged in, you will see two folders, 'auto_export 'and auto_import'. The files you want to submit for automatic processing should be placed in the folder 'auto_import'
5. Automatic upload for WinSCP batch mode

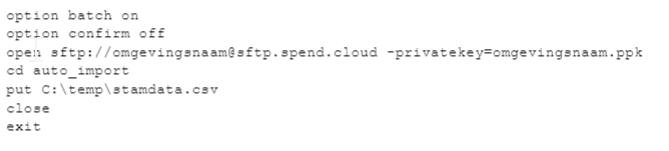

  1. For automatic processing, WinSCP has a batch mode, with which uploading files can be automated. WinSCP can continually get commands through a script. Such a script could look like this:

The paths and file names can be changed to the name you see fit.
  1. Calling this script on the console is as follows: WinSCP/console/script=environmentname.txt. This of course from the directory where environmentname.txt is located and where the WinSCP command is recognized
  2. This call can then be scheduled to run at set times. An automatic import can then be set up in the Spend Cloud. Please allow some time between these two assignments
  3. So that it is certain that the upload of the data is completed as soon as the import is running
